Ares Project Updates (2006-2010)

NASA Constellation Program

Ares V, a heavy lift launch vehicle, will use five RS-68 liquid oxygen/liquid hydrogen engines mounted below a larger version of the space shuttle's external tank, and two five-segment solid propellant rocket boosters for the first stage. The upper stage will use the same J-2X engine as the Ares I. The Ares V can lift more than 286,000 pounds to low Earth orbit and stands approximately 360 feet tall. This versatile system will be used to carry cargo and the components into orbit needed to go to the moon and later to Mars.
Watch Part Number: 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25
1 rating
Views: 32,460
Date Added: 10 years ago.

Videos in this documentary

# Video Play
1 Ares Project Quarterly Progress Report - 1 Play Video
2 Ares Project Quarterly Progress Report - 2 Play Video
3 Ares Project Quarterly Progress Report - 3 Play Video
4 Ares Project Quarterly Progress Report - 4 Play Video
5 Ares Project Quarterly Progress Report - 5 Play Video
6 Ares Project Quarterly Progress Report - 6 Play Video
7 Ares Project Quarterly Progress Report - 7 Play Video
8 Ares Project Quarterly Progress Report - 8 Play Video
9 Ares Project Quarterly Progress Report - 9 Play Video
10 Ares Project Quarterly Progress Report - 10 Play Video
11 Ares Project Quarterly Progress Report - 11 Play Video
12 Ares Project Quarterly Progress Report - 12 Play Video
13 Ares Project Quarterly Progress Report - 13 Play Video
14 October 23, 2009: Ares I-X Rollout Play Video
15 October 28, 2009: Ares I-X Rocket Completes Successful Flight Test Play Video
16 October 28, 2009 Ares I-X Re-entry and Splashdown Play Video
17 November 13, 2009 Ares Progress Highlights Play Video
18 Ares Project Quarterly Progress Report - 14 Play Video
19 Ares Project Quarterly Progress Report - 15 Play Video
20 May 10, 2010 Orion/Ares I Ground Operations Processing Animation Play Video
21 May 10, 2010 Orion Offline Operations: Multi-Payload Processing Facility Play Video
22 May 10, 2010 Ares First Stage Ground Operations in the Rotation Processing & Surge Facility Play Video
23 May 10, 2010 Vehicle Assembly Vehicle Operations Play Video
24 May 10, 2010 Launch Pad Operations Play Video
25 May 10, 2010 Crew Module Recovery Operations Play Video

Documentary Description


Ares Launch Vehicles



NASA's Ares rockets, named for the Greek god associated with Mars, will return humans to the moon and later take them to Mars and other destinations. Future astronauts will ride to orbit on Ares I, which uses a single five-segment solid rocket booster, a derivative of the space shuttle's solid rocket booster, for the first stage. A liquid oxygen/liquid hydrogen J-2X engine derived from the J-2 engine used on Apollo's second stage will power the crew exploration vehicle's second stage. The Ares I can lift more than 55,000 pounds to low Earth orbit.



Planning and early design are under way for hardware, propulsion systems and associated technologies for NASA's Ares V cargo launch vehicle -- the "heavy lifter" of America's next-generation space fleet. Ares V will serve as NASA's primary vessel for safe, reliable delivery of large-scale hardware to space -- from the lunar landing craft and materials for establishing a moon base, to food, fresh water and other staples needed to extend a human presence beyond Earth orbit.



Overview: Ares I Crew Launch Vehicle




NASA is already at work developing hardware and systems for the Ares I rocket that will send future astronauts into orbit. Built on cutting-edge launch technologies, evolved powerful Apollo and space shuttle propulsion elements, and decades of NASA spaceflight experience, Ares I is the essential core of a safe, reliable, cost-effective space transportation system -- one that will carry crewed missions back to the moon, on to Mars and out into the solar system.



Ares I is an in-line, two-stage rocket configuration topped by the Orion crew vehicle and its launch abort system. In addition to the vehicle's primary mission -- carrying crews of four to six astronauts to Earth orbit -- Ares I may also use its 25-ton payload capacity to deliver resources and supplies to the International Space Station, or to "park" payloads in orbit for retrieval by other spacecraft bound for the moon or other destinations.



During launch, the first-stage booster powers the vehicle toward low Earth orbit. In mid-flight, the reusable booster separates and the upper stage's J-2X engine ignites, putting the vehicle into a circular orbit.



Crew transportation to the International Space Station is planned to begin no later than 2014. The first lunar excursion is scheduled for the 2020 timeframe.



Ares I First Stage



The Ares I first stage is a single, five-segment reusable solid rocket booster derived from the Space Shuttle Program's reusable solid rocket motor, which burns a specially formulated and shaped solid propellant.



A newly designed forward adapter will mate the vehicle's first stage to the upper stage, and will be equipped with booster separation motors to disconnect the stages during ascent.



Ares I Upper Stage / Upper Stage Engine



The Ares I second, or upper, stage is propelled by a J-2X main engine fueled with liquid oxygen and liquid hydrogen.



The J-2X is an evolved variation of two historic predecessors: the powerful J-2 engine that propelled the Apollo-era Saturn IB and Saturn V rockets, and the J-2S, a simplified version of the J-2 developed and tested in the early 1970s but never flown.



Overview: Ares V Cargo Launch Vehicle



Planning and early design are under way for hardware, propulsion systems and associated technologies for NASA's Ares V cargo launch vehicle -- the "heavy lifter" of America's next-generation space fleet. Ares V will serve as NASA's primary vessel for safe, reliable delivery of large-scale hardware to space -- from the lunar landing craft and materials for establishing a moon base, to food, fresh water and other staples needed to extend a human presence beyond Earth orbit.



Under the goals of NASA's exploration mission, Ares V is a vital part of the cost-effective space transportation infrastructure being developed by NASA's Constellation Program to carry human explorers back to the moon, and then onward to Mars and other destinations in the solar system.



The Ares V effort includes multiple hardware and propulsion element teams at NASA centers and contractor organizations around the nation, and is led by the Ares Projects Office at NASA’s Marshall Space Flight Center in Huntsville, Ala. These teams rely on nearly a half century of NASA spaceflight experience and aerospace technology advances. Together, they are developing new vehicle hardware and flight systems and maturing technologies evolved from powerful, proven Saturn rocket and space shuttle propulsion elements and knowledge.



The versatile, heavy-lifting Ares V is a two-stage, vertically stacked launch vehicle. It can carry nearly 414,000 pounds (188 metric tons) to low-Earth orbit. When working together with the Ares I crew launch vehicle to launch payloads into Earth orbit, Ares V can send nearly 157,000 pounds (71 metric tons) to the moon.



For its initial insertion into Earth orbit, the Ares V first stage relies on two five-and-a-half-segment reusable solid rocket boosters. These are derived from the space shuttle solid rocket boosters and are similar to the single booster that serves as the first stage for the cargo vehicle's sister craft, the Ares I crew launch vehicle. This hardware commonality makes operations more cost effective by using the same manufacturing facilities for both the crew and cargo vehicles.



The twin reusable solid rocket boosters of the cargo lifter's first stage flank a single, liquid-fueled central booster element, known as the core stage. Derived from the Saturn V, the core stage tank delivers liquid oxygen and liquid hydrogen propellants to a cluster of six RS-68B rocket engines. The engines are upgraded versions of those currently used in the Delta IV, developed in the 1990s by the U.S. Air Force for its Evolved Expendable Launch Vehicle program and commercial launch applications. Together, these propulsion elements comprise the Ares V's first stage.



Atop the central booster element is an interstage cylinder, which includes booster separation motors. It connects the core stage to the Ares V Earth departure stage, which is propelled by a J-2X main engine. The J-2X, also powered by liquid oxygen and liquid hydrogen, is an evolved variation of two historic predecessors: the powerful J-2 upper-stage engine that propelled the Apollo-era Saturn IB and Saturn V rockets to the moon and the J-2S, a simplified version of the J-2 developed and tested in the early 1970s.



Anchored atop the Earth departure stage is a composite shroud protecting the Altair lunar lander, which includes the descent stage that will carry explorers to the moon's surface and the ascent stage that will return them to lunar orbit to rendezvous with the Orion crew exploration vehicle for their return home.

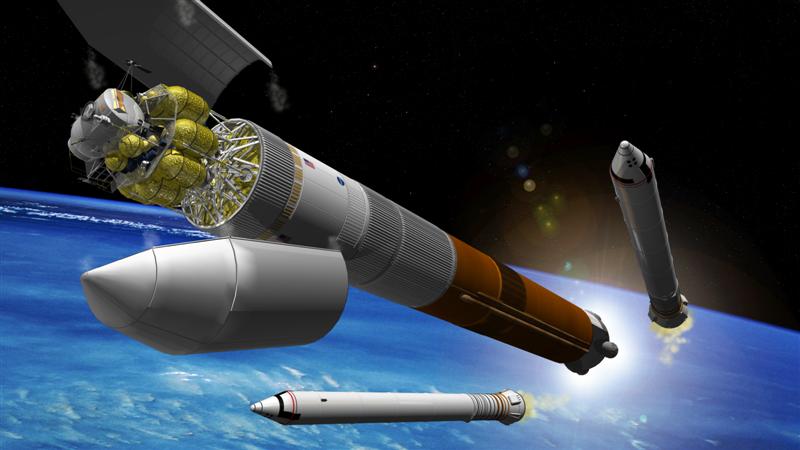

During launch of an Ares V, the reusable solid rocket boosters and core propulsion stage power the vehicle into low-Earth orbit. After separation from the spent core stage, the Earth departure stage's J-2X engine takes over, placing the vehicle in a circular orbit, and the departure stage shroud separates to prepare the lander for rendezvous with the Orion capsule.



Orion carrying four astronauts is delivered to space separately by the Ares I rocket. Orion then docks with the orbiting departure stage and its lunar lander payload. Once mated, the Earth departure stage fires its J-2X engine a second time to achieve "escape velocity," the speed necessary to break free of Earth's gravity, and the lunar vessel begins its journey to the moon.



The Earth departure stage is jettisoned after it puts the mated Orion capsule and Altair lander on course for the moon. Once the astronauts arrive in lunar orbit, they transfer to the lunar module and descend to the moon’s surface. Orion remains in orbit until the astronauts depart from the moon in the lunar vessel, rendezvous with the spacecraft in orbit and return to Earth.



The Ares V also represents an unmatched national asset for lifting heavy exploration, scientific, and commercial payloads to Earth orbit or trans-lunar injection, a trajectory designed to intersect with the moon. Such lift capabilities will enable NASA to, in time, undertake crewed missions to destinations beyond the moon.



The first test flight of the Ares V is planned for around 2018. The first crewed lunar excursion is scheduled for launch in the 2020 timeframe.
